Toshiba Releases Industry's First Photocouplers for High-Speed Communications that can Operate from 2.2V

― Support low-voltage peripheral circuits and enable parts reductions ―

Toshiba Electronic Devices & Storage Corporation ("Toshiba") has released the industry's first[1] photocouplers for

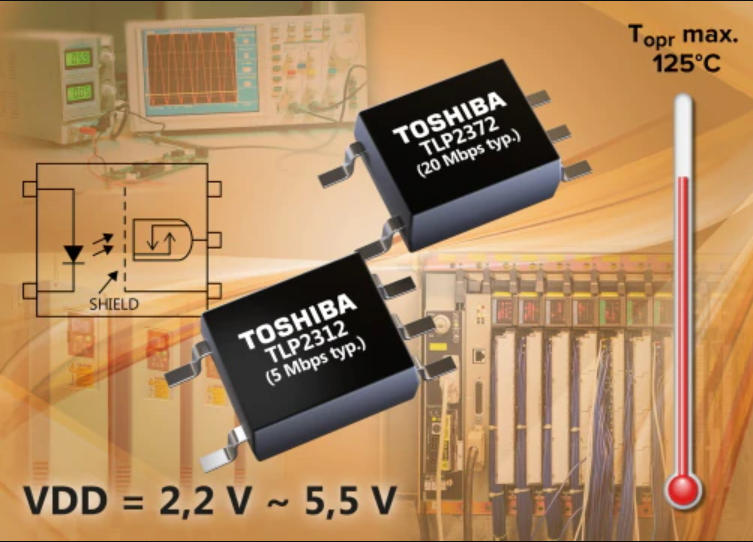

high-speed communications that can operate with a power supply as low as 2.2V. The two devices are the "TLP2312",

which delivers at typical data transfer rate of 5Mbps, and the 20Mbps "TLP2372".

The new products are designed to operate at low voltage, starting at 2.2V, so as to work with the lower voltages of

the peripheral circuits, even when used in such low level voltage circuits as 2.5V LVCMOS. This approach eliminates

the need for a separate power supply to drive the photocouplers, reducing the component count.

With a low threshold input current of 1.6mA (max), and low supply current of 0.5mA (max) in their -40℃ and

+125℃ operating temperature range, the new photocouplers can be directly driven by microcontrollers, reducing

power consumption.

The new photocouplers are housed in 5-pin SO6 package with a maximum height of 2.3mm, securing a low profile

and bringing greater freedom to component layout on printed circuit boards.

Applications

High-speed digital interfaces
(programmable logic controllers (PLCs), general purpose inverters, measuring equipment and control equipment, etc.)

Features

• Low voltage operation: VDD=2.2V to 5.5V
• Low threshold input current: IFLH=1.6mA (max)
• Low supply current: IDDH, IDDL =0.5mA (max)
• High operating temperature rating: Topr max=125℃

• High-speed data transfer rates: 5Mbps (typ.) (TLP2312) / 20Mbps (typ.) (TLP2372)

Main Specifications      (Unless otherwise specified, @Ta= -40 to +125℃)
