"Decrypting Optical Relays: From Principle To Application"

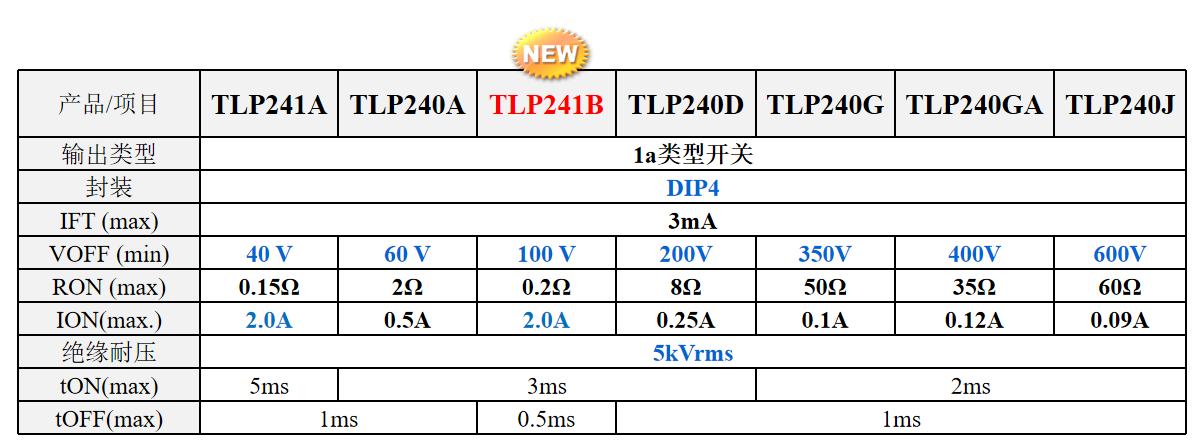

DIP4 package series insulated voltage 5000 Vrms

Trait:

① High strength, long life LED

The initial design margin of the design IF can be reduced.

② Adopt dual-mode structure

Guaranteed voltage =5,000 Vrms.

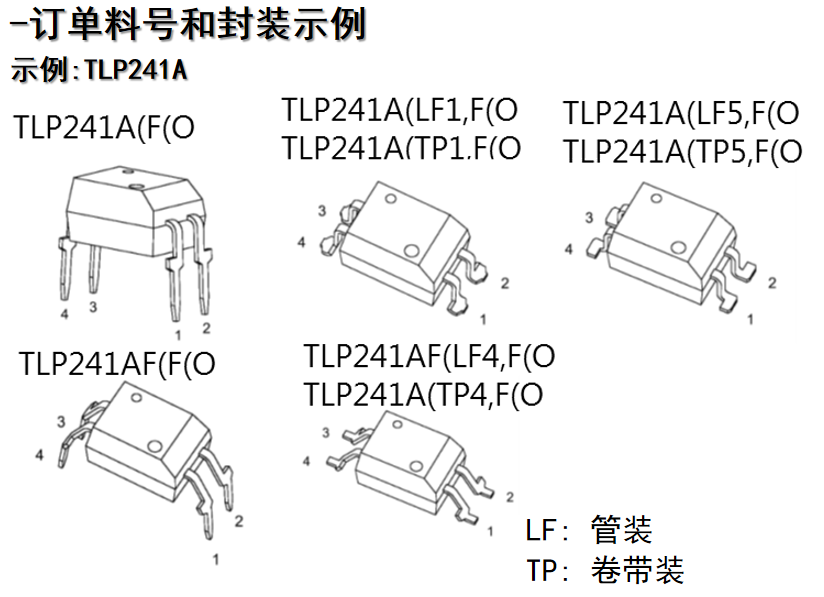

③ Support a variety of patch packaging

- Alternative reference -

The following models can be replaced

Low cost single light receiving chip element TLP175A

Trait:

· Low trigger LED current IFT=1mA

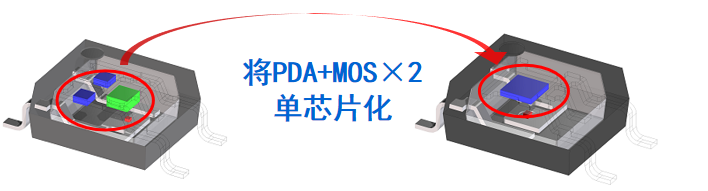

· High cost performance (from the original 3chip configuration to 1chip configuration!)

The 4-pin SO6 package enables a photorelay with low trigger LED current

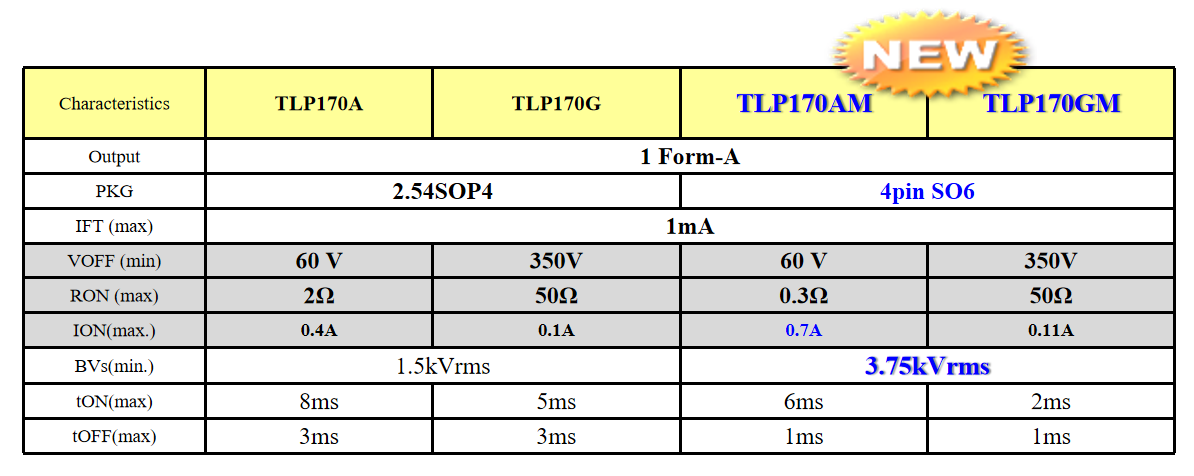

TLP170AM, TLP170GM

By increasing the sensitivity of the photodiode array, the maximum triggered LED current reaches 1 mA, reducing the input side power loss. Therefore, by using it as a battery-operated safety device and an on/off control output for various sensors, it helps to reduce the power consumption and long-term operation of the device.

Trait:

· Low trigger LED current :IFT=1mA(max)

· Small package: 4-pin SO6

· High insulation voltage :BVs=3750Vrms(min)

Trait:

Use：

· Safety system - Passive sensor (PIR[Note 1])

· Industrial equipment

· Programmable logic controller, I/O interface, various sensor control

· Building automation system

· Replace various mechanical relays

[Note 1]PIR (Passive infrared) : A sensor that detects a person's proximity by changes in ambient infrared radiation

Summarize:

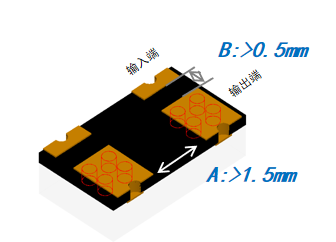

A: Output pin spacing >1.5 mm

(compliant with @IEC61010-1)

B: Input and output pin spacing > 0.5mm

(Better weldability)

Note) There are no plans to obtain UL, cUL and other safety standards certification.

Products need to be treated in accordance with hygroscopic Management Level 3 (JEDEC) to obtain moisture-proof packaging.

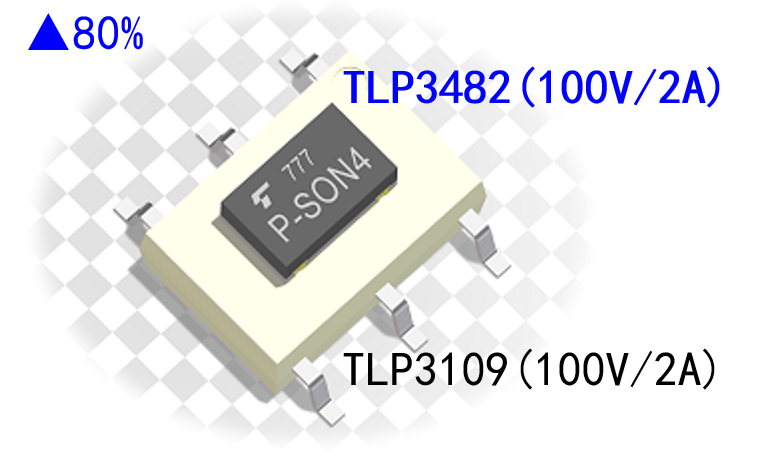

 80% reduction in volume

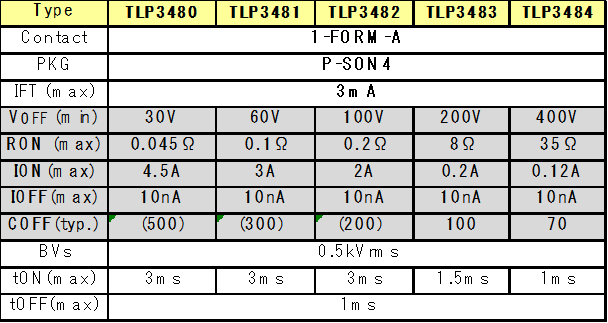

 TLP348 series products

*TLP3483 TLP3484 is under development

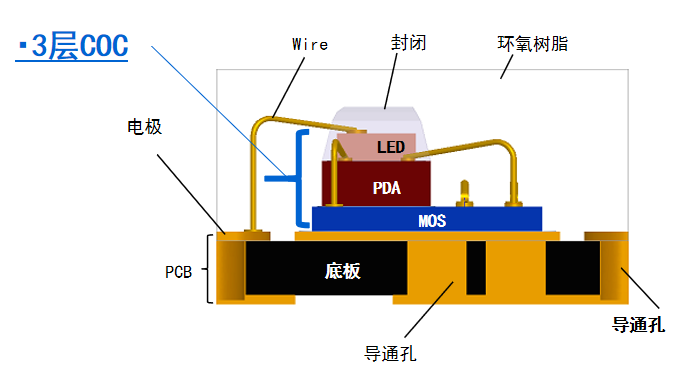

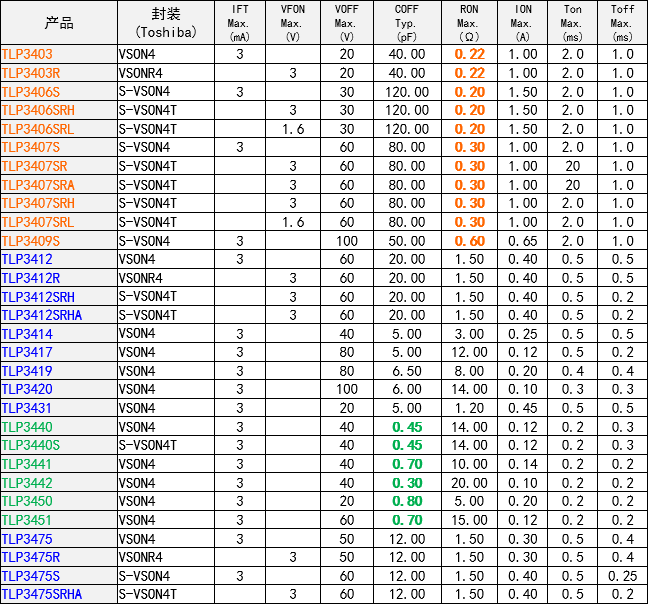

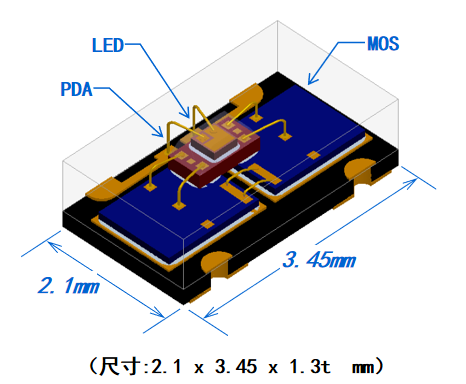

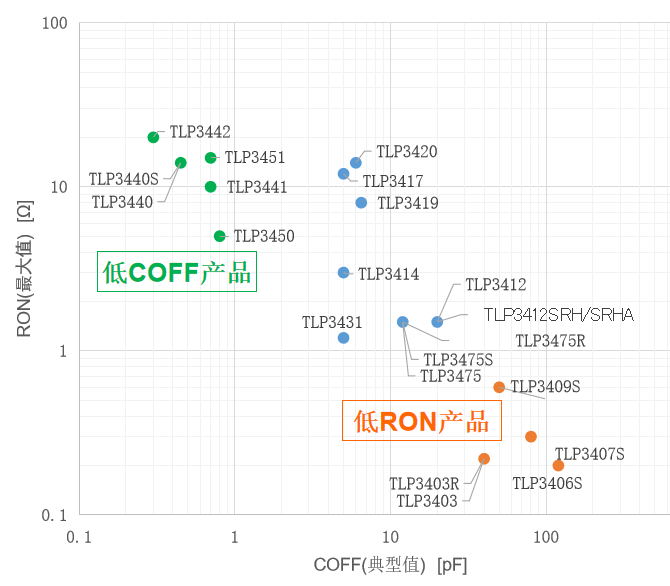

Ultra-small package series TLP34xx VSON4 series

Note) There are no plans to obtain UL, cUL and other safety standards.

Products need to be treated in accordance with hygroscopic Management Level 3 (JEDEC) to obtain moisture-proof packaging.

The minimum installation area of the photoelectric relay TLP3407SRA/TLP3412SRHA/TLP3475SRH voltage driver

Trait:

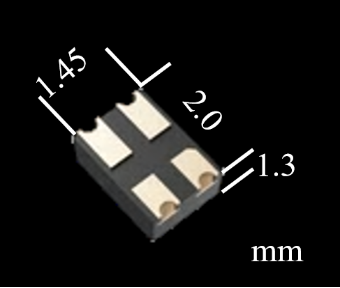

The S-VSON4T package has the industry's smallest mounting area and a maximum operating temperature of 125°C

Installation area: 2.9 mm2 (typical value)

· Input side low power drive: 3.3mW [Note 1](max)@VIN= 3.3V (TLP3407SRA)

[Note 1] Input forward voltage x maximum limit LED current = 3.3V x 1mA

Main characteristics：

Use:

· Semiconductor tester (memory, SoC, LSI, etc.)

· Probe card

· Aging test device

· Measuring instruments (oscilloscope, data recorder, etc.)

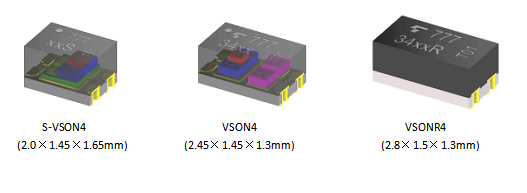

Encapsulation and pin assignment

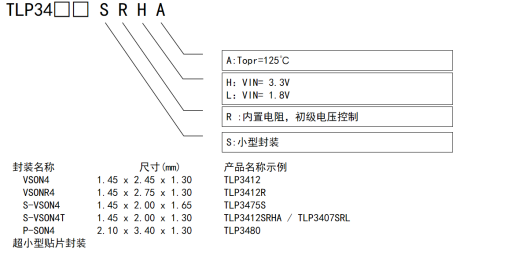

VSON optical relay type naming rules

UL 508 certified product line

Global manufacturers of PLCS and various industrial control equipment market their products as UL 508 certified products. Therefore, the switch parts used, such as mechanical relays and SSRS, also require UL 508 certification.

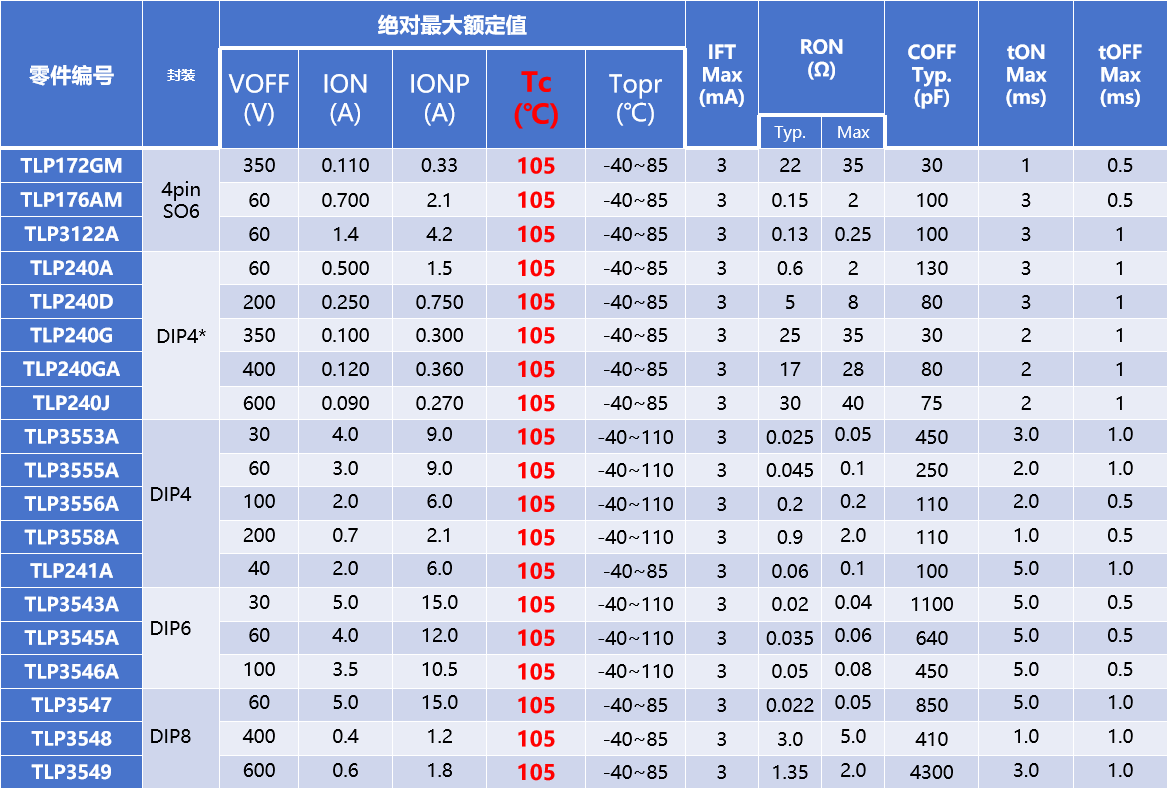

- UL 508 Certified Product Example -

PLC, power supply, UPS, protection unit, connector, socket, sensor controller, etc
