Light At Your Fingertips, A Light In Your Heart! Take You Through Fiber Couplers

Fiber coupler characteristics TOSLINKTM

TOSLINKTM is a product that uses plastic fiber/optical adapters to transmit digital signals.

Optical transmission module: electrical signals are converted into optical signals and transmitted to optical fibers.

Fiber/optical adapter: The path of the optical signal, optical connectors are required at both ends.

Optical receiving module: It receives optical signals from optical fibers and converts them into electrical signals.

Optical transmission module series Optical receiving module series

TOSLINK 1300: Universal logic IC driver LED TOSLINK 1300: Built-in waveform shaping circuit

TOSLINK 1900: Integrated LED driver circuit TOSLINK 1900: Built-in waveform circuit

Plastic fiber optic / fiber optic adapter transmission function

Data transmission using plastic optical fibers has the following advantages over using metal cables.

TOSLINK product list

From the point of view of transmission speed and transmission distance, there are a variety of products that can be selected to suit the application.

Internal circuitry (transmitter module)

The TOSLINK 1300 series uses a general-purpose logic IC to drive LEDs

TOSLINK 1900 series has built-in LED driver circuit, customers can choose the appropriate type.

TOSLINK 1300 series product family

Optical modules corresponding to JIS F05 optical connectors (unidirectional type)

PN type (JIS F07 type) optical connector corresponding to optical module (bidirectional type)

Optical modules for long-distance transmission

Optical Transport Module TOTX1350(F)/TOTX1350(V,F)

Optical receiver module TORX1350A(F)/TORX1350A(V,F)

Optical Transceiver Module TODX2350A (F)

Low-power optical module

Optical Transport Module TOTX1350(F)/TOTX1350(V,F)

Optical receiver module TORX1355(F)/TORX1355(V,F)

Optical Transceiver Module TODX2355(F)

TOSLINK 1300 series long-distance transmission optical module driving method

The TOSLINK 1300 series can drive LEDs with a simple circuit.

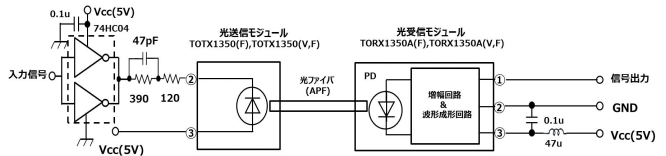

Optical modules for long-distance transmission (TOTX1350/TORX1350A)

(a) IF = 1.5 mA drive (when the transmission distance is less than or equal to 50m)

(b) IF=6 mA drive (with transmission distance equal to 50m to 100m)

Depending on the type of logic IC (IOH/IOL>6mA),

One inverter circuit can also be used to drive the LED of the optical transmission module.

 TOSLINK 1300 series low-power optical module driving method

B. Low-current optical modules (TOTX1350/TORX1355)

(a) IF = 4mA drive (when the transmission distance is less than or equal to 10m)

(b)  IF=1.5 mA drive (when the transmission distance is less than or equal to 5m)

 TOSLINK1300 series updates

TOSLINK 1300 series is a new series that can support longer distances and lower current consumption compared to TOSLINK 1900 series.

Package types are horizontal and vertical,

Provides chassis design flexibility.

Fiber optic connectorsUnidirectional optical module adapters TOCA1300/TOCA1301

The TOCA1301/1300 is an optical adapter connected to an optical transmitting module and an optical receiving module for short-distance data transmission.

peculiarity

・Transmission distance (insulation distance):

TOCA1300:23.6mm※1

TOCA1301: 34.0 mm※ 1(New Product)

・Transmission rate: DC-10Mb/s

(When using TOTX1350, TORX1350A/1355)

*1 Increase the distance between the terminals at both ends

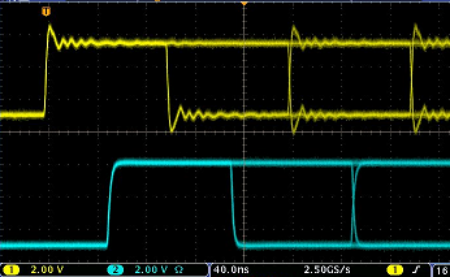

Example of transmission waveform (Ta=25°C, Vcc=5V, 10Mb/s random signal)

When using TOTX1350 and TORX1355

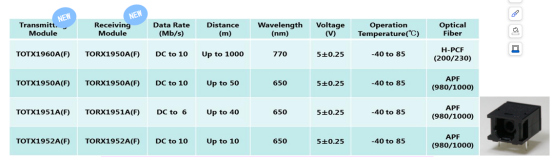

TOSLINK 1900 series product family

Optical modules corresponding to JIS F05 optical connectors (unidirectional type)

PN type (JIS F07 type) optical connector corresponding to optical module (bidirectional type)
