Lineup Expansion Of -60 V P-Channel Power Mosfets That Contribute To Lower Power Consumption For Automotive Equipment

Toshiba Electronic Devices & Storage Corporation ("Toshiba") has started mass production of two -60 V P-channel MOSFETs using SOP Advance(WF) package for automotive and has expanded its lineup. The two models are "XPH8R316MC and XPH13016MC."

The new products XPH8R316MC and XPH13016MC are qualified with the automotive reliability standard AEC-Q101.The SOP Advance(WF) package is a surface mount type that uses a wettable flank terminal structure, which facilitates automated visual inspection of the board mounting state. In addition, it has reduced package resistance by adopting the Cu connector structure.
The maximum drain-source On-resistance of XPH8R316MC is 8.3 mΩ, which is approximately 25 % lower than that of Toshiba’s existing product TPCA8123[1], and XPH13016MC is 12.9 mΩ, which is approximately 49 % lower than that of Toshiba’s existing product TPCA8125[1]. This contributes to low power consumption of automotive equipment.

Applications

Automotive equipment: load switches, semiconductor relays, motor drives, etc.

Features

AEC-Q101 qualified

Low On-resistance

XPH8R316MC: RDS(ON)=8.3 mΩ (max) (VGS=-10 V)

XPH13016MC: RDS(ON)=12.9 mΩ (max) (VGS=-10 V)

SOP Advance(WF) package with wettable flank terminal structure and Cu connector structure

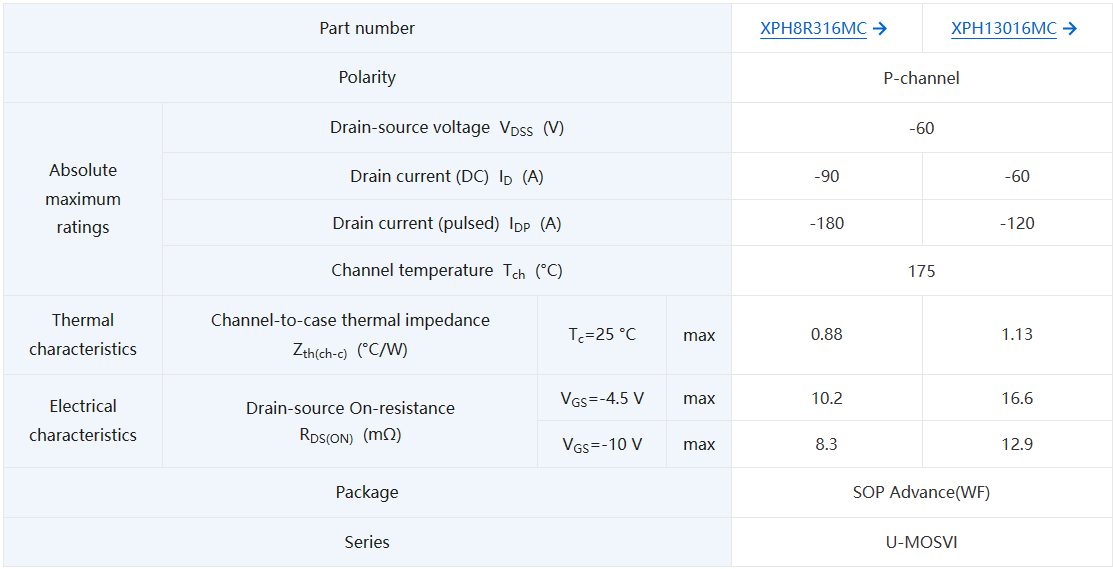

Main Specifications
